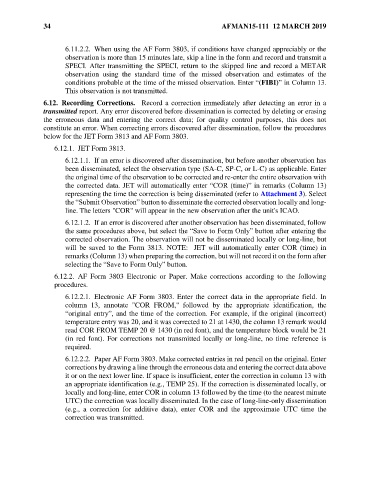

34                                                         AFMAN15-111  12 MARCH 2019



                       6.11.2.2.  When using the AF Form 3803, if conditions have changed appreciably or the
                       observation is more than 15 minutes late, skip a line in the form and record and transmit a
                       SPECI. After transmitting the SPECI, return to the skipped line and record a METAR
                       observation  using  the  standard  time  of  the  missed  observation  and  estimates  of  the
                       conditions probable at the time of the missed observation. Enter “(FIBI)” in Column 13.
                       This observation is not transmitted.
               6.12.  Recording Corrections.   Record a correction immediately after detecting an error in a
               transmitted report. Any error discovered before dissemination is corrected by deleting or erasing
               the  erroneous  data  and  entering  the  correct  data;  for  quality  control  purposes,  this  does  not
               constitute an error. When correcting errors discovered after dissemination, follow the procedures
               below for the JET Form 3813 and AF Form 3803.

                   6.12.1.  JET Form 3813.
                       6.12.1.1.  If an error is discovered after dissemination, but before another observation has
                       been disseminated, select the observation type (SA-C, SP-C, or L-C) as applicable. Enter
                       the original time of the observation to be corrected and re-enter the entire observation with
                       the corrected data. JET will automatically enter “COR (time)” in remarks (Column 13)
                       representing the time the correction is being disseminated (refer to Attachment 3). Select
                       the “Submit Observation” button to disseminate the corrected observation locally and long-
                       line. The letters "COR" will appear in the new observation after the unit's ICAO.

                       6.12.1.2.  If an error is discovered after another observation has been disseminated, follow
                       the same procedures above, but select the “Save to Form Only” button after entering the
                       corrected observation. The observation will not be disseminated locally or long-line, but
                       will be saved to  the Form  3813. NOTE:  JET will automatically enter  COR (time) in
                       remarks (Column 13) when preparing the correction, but will not record it on the form after
                       selecting the “Save to Form Only” button.
                   6.12.2.  AF  Form  3803  Electronic  or  Paper.  Make  corrections  according  to  the  following
                   procedures.
                       6.12.2.1.  Electronic  AF  Form  3803.  Enter  the  correct  data  in  the  appropriate  field.  In
                       column  13,  annotate  "COR  FROM,"  followed  by  the  appropriate  identification,  the
                       “original entry”, and the time of the correction. For example, if the original (incorrect)
                       temperature entry was 20, and it was corrected to 21 at 1430, the column 13 remark would
                       read COR FROM TEMP 20 @ 1430 (in red font), and the temperature block would be 21
                       (in red  font).  For  corrections  not  transmitted locally or long-line, no time reference is
                       required.
                       6.12.2.2.  Paper AF Form 3803. Make corrected entries in red pencil on the original. Enter
                       corrections by drawing a line through the erroneous data and entering the correct data above
                       it or on the next lower line. If space is insufficient, enter the correction in column 13 with
                       an appropriate identification (e.g., TEMP 25). If the correction is disseminated locally, or
                       locally and long-line, enter COR in column 13 followed by the time (to the nearest minute
                       UTC) the correction was locally disseminated. In the case of long-line-only dissemination
                       (e.g.,  a  correction  for  additive  data),  enter  COR  and  the  approximate  UTC  time  the
                       correction was transmitted.
